    OEM Spectroscopy Solutions Designed and Manufactured In-House

    Custom spectrometers and complete spectroscopy solutions for OEM applications

    Torrent Photonics develops and manufactures OEM spectrometers for customers requiring application-specific spectroscopy solutions. From custom optics and transmission gratings to electronics, firmware, interfaces and system integration, our engineering team supports OEM programs from initial development through to volume production.



    Discuss Your Requirements
    Torrent Photonics_Renegade UV VIS Spectrometer (6)

    Built for OEM Integration

    Torrent works with OEM customers developing products that require embedded spectroscopy capabilities. Spectrometers can be tailored around specific wavelength ranges, resolution requirements, throughput targets, slit configurations and integration needs.

    Customers work directly with our engineering team throughout development, allowing optical, electronic, mechanical and software requirements to be considered early in the design process.

    Proven OEM Spectrometer Platforms

    The Renegade UV-VIS and Renegade VIS spectrometers are OEM-ready platforms designed around Torrent’s proprietary fused silica transmission gratings. They provide a proven starting point for customers evaluating spectroscopy performance and demonstrate the capabilities available through our custom OEM spectrometer development programs.

    The Renegade platforms use fused silica transmission gratings manufactured in-house by Torrent. Key optical and mechanical elements are also produced internally, demonstrating our end-to-end manufacturing approach available to OEM customers.

    The compact, fiber-coupled design makes the Renegade suitable for integration into OEM instruments and provides a scalable platform for commercial manufacturing programs.

    Demonstration units of the Renegade UV-VIS and Renegade VIS spectrometers are available, allowing engineers to evaluate performance before progressing to a customized OEM design.

    Product Features

    • Environmentally stable, robust design
    • Compact and customizable platform
    • Proprietary transmission grating with UV-sensitivity
    • Fiber-coupled configuration
    • Low unit-to-unit variation
    • Designed for OEM integration
    • Suitable for commercial production programs
    Torrent Photonics_Renegade UV VIS Spectrometer (23)

    In-House Transmission Grating Manufacture

    Torrent designs and manufactures transmission gratings in-house. This gives OEM customers access to application-specific optical performance without relying on a separate third-party supplier.

    The grating can be developed as part of the complete spectrometer design and matched to the required wavelength range, resolution and throughput.

    Complete OEM Spectroscopy Solutions

    Torrent can support the complete spectroscopy subsystem, not only the spectrometer. Capabilities include:



    • Optical design
    • Custom transmission gratings
    • Spectrometer development
    • Detector integration
    • Electronics design
    • Firmware development
    • API customization
    • Communications interfaces
    • Light-source control
    • Additional sensor integration
    • Mechanical integration
    • Complete box-build solutions

    Compact, High-Performance, Customizable Spectrometers

    Renegade UV-VIS

    Renegade VIS

    Torrent Photonics_Renegade UV VIS Spectrometer (19)

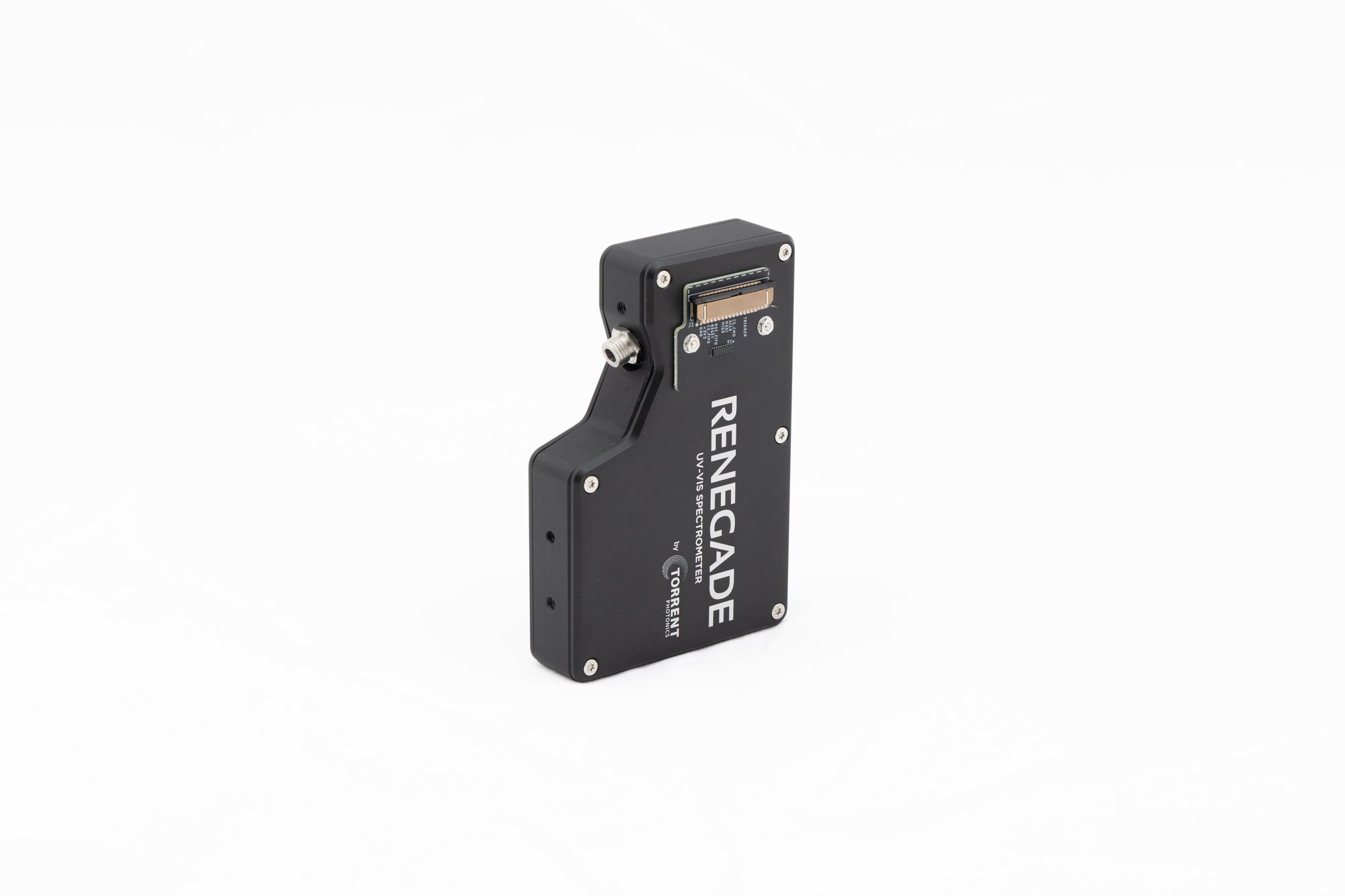

     The Renegade UV-VIS spectrometer offers wavelength coverage from 190 to 850 nm, supporting applications that require deep-UV measurement capability. This includes medical and biochemical analysis, analytical instrumentation, industrial monitoring and environmental measurement.

    Torrent Photonics_Spectrometer (15)

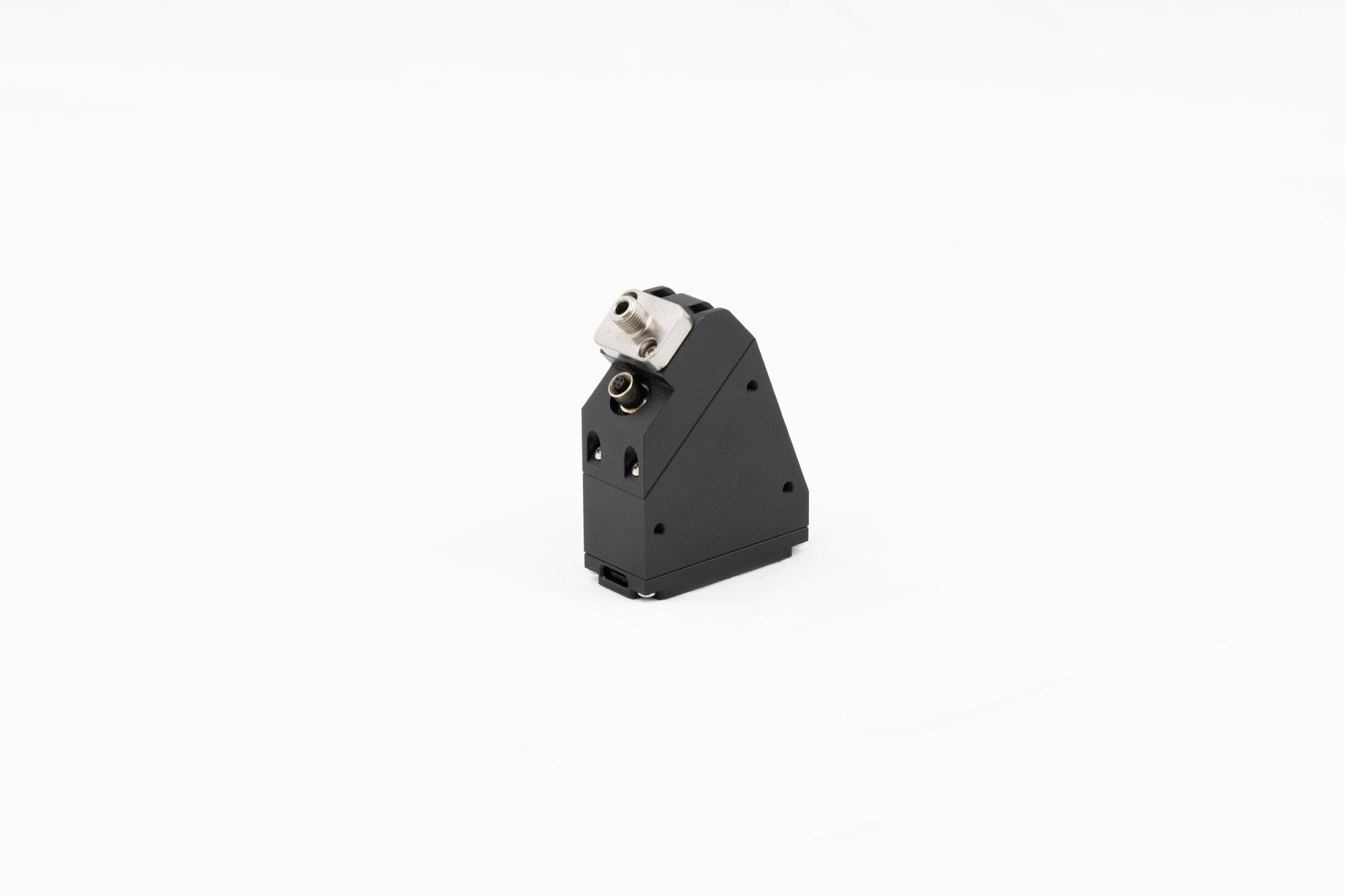

     The Renegade VIS spectrometer covers wavelengths from 355 to 785 nm. It can be integrated into OEM systems for visible spectroscopy, color measurement and applications requiring objective qualitative or quantitative spectral data.

    Designed and Manufactured In-House

    Torrent designs and manufactures key spectrometer components in-house, including custom transmission gratings and optics. This reduces reliance on external suppliers and provides greater control over optical performance, design flexibility, cost and production scalability.

    Our approach allows us to support OEM programs from prototype development through to volume manufacture.

    Renegade Specifications



    Renegade UV-VIS

    		 Renegade VIS
    Wavelength Range 190 nm to 850 nm 335 nm to 785 nm
    Optical Resolution 1.25 nm FWHM  (with 20 um slit)  1.2 nm FWHM
    Integration Time 200 μs to 10 s  200 μs to 10 s
    Dark Noise Approximately 250 counts/sec at 20C
    		 Approximately 250 counts/sec at 20C
    Dynamic Range 5000:1 5000:1
    Input Fiber Connector SMA SMA
    Signal to Noise Ratio 300:1 300:1
    Detector Hamamatsu S11639 Hamamatsu S15796
    Grating 1250 lp/mm fused silica transmission grating  1250 lp/mm fused silica transmission grating
    Pixels 2048 1024
    Entrance Split 20 um (custom options available) 20um
    Numerical Aperature 0.22 NA 0.22 NA
    Stray Light 0.01% with 532 nm 0.01% with 532 nm
    Operating Temp. Range Non-Condensing: 0°- 50°C Non-condensing: 0° - 55° C
    Dimensions 90 x 60 x 18 mm body, 90 x 60 x 22 mm including connector 65 x 45 x 20 mm including connector
    Weight 145g 100g
    ADC Resolution 65,000 counts 65,000 counts
    Inputs/Outputs

    COTS options: SPI, USB

    Custom: ModBus, CAN, EtherCAT, Ethernet/IP, SECS/GEM300

    		 SPI or USB COTS other industry standard possible
    Trigger Modes Internal or external source, single, multiple accumulate, multiple average Internal or external source, single, multiple accumulate, multiple average
    Power Consumption 3.3 V, 60 mA 5V 50mA for the USB variant, 12V 40mA for the SPI variant
    Thermal Drift: <1 nm over operating temperature range, typically <0.5 nm   <1 nm over operating temperature range, typically <0.5 nm



    Work Directly with our Engineering Team

    OEM customers work directly with Torrent’s engineering team from concept through production. This collaborative approach allows optical, electronic, mechanical and software requirements to be considered together rather than handled as separate stages of development.

    We can customize a Renegade platform or develop a broader OEM spectroscopy solution around the wavelength range, resolution, throughput, interface and integration requirements of your application.

    Spectroscopy Banner

    From Development to Volume Production

    Torrent supports OEM customers moving toward commercial production. Our in-house design and manufacturing capabilities provide control over critical optical components while supporting consistent performance across production quantities.

    Our OEM spectrometer programs are intended for products requiring ongoing manufacture rather than individual, one-off laboratory systems.

    Discuss Your OEM Spectrometer Requirements

    Whether you need a customized spectrometer, a complete spectroscopy subsystem or a demonstration unit for evaluation, our engineering team can discuss the technical and production requirements of your application.
