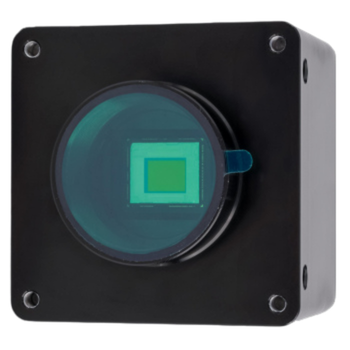

PixelCam™ Multispectral Cameras

Customizable, high-speed, multiband imaging in a small form factor.

PixelCam-Multispectral-Cameras_Banner

OEM Multispectral Cameras with Simultaneous Multiband Imaging

PixelCam™ multispectral cameras provide live imaging of 3 to 9 spectral bands, off-the-shelf or custom, at video rates. Simultaneous multichannel “snapshot” acquisition delivers rich, real-time data without scene change or pixel shift.

Custom dichroic filter arrays are integrated into the focal plane array at wafer level to create robust linear and area sensors that extract high-contrast spectral information at specific visible and infrared wavelengths.

This breakthrough technology enables easy integration into handheld, mobile, and aerial cameras – all with the same frame rate, size, weight, and power consumption as monochrome cameras.

  • Custom VIS-NIR-SWIR Spectral Bands
  • Portable Size, Weight, and Power Consumption
  • Robust, High Reliability, Scalable Production

Applications

  • Aerial Mapping
  • Biomedical Imaging
  • Machine Vision
  • Product Screening
  • Remote Sensing
  • Unmanned Systems
  • Surveillance and Authentication

OEM Customization

  • Application-Specific Spectral Bands
  • Custom Pixel-Scale Mosaic Patterning
  • Mechanical and Environmental Requirements
  • Proof-of-Concept Prototypes to High-Volume Production
  • Sensor, Camera, and Housing Options
Product Highlight

PixelCam™ 9-Band SWIR camera

Discerns Between 9 Distinct Spectral Ranges from 1000nm to 1700nm

The PixelCam™ 9-Band SWIR camera utilizes the latest developments in high-performance SWIR (Short Wave Infrared) image sensors. It combines Torrent’s patented pixelated filters to create a multispectral imaging system capable of discerning 9 distinct spectral ranges between 1000nm and 1700nm.

This opens the door to a wide range of applications where distinguishing the different SWIR “colors” enables identification of other subjects much more clearly. Using the SWIR spectrum enables deeper penetration into certain substances and even the ability to see right through them when a visible image would be occluded or even completely opaque

PixelCam 9-Band

PixelCam™ UV-SWIR Multispectral Cameras

Standard options fit your project needs? Visit our partner Knight Optical.





4MP VIS+ NIR

56MP VIS+ NIR  Commercial / Scientific SWIR Security & Defense SWIR
Spectral Response  400nm to 1000nm   400nm to 1000nm  0.9µm to 1.7µm
(900nm -1700nm)
0.9µm to 1.7µm
(900nm to 1700nm)
Resolution 2072x2072 px   8424x6032 px  1280x1024 px 640x512 px
Sensor  Si Interline CCD
7.4µm Pixel Pitch
Si Area CMOS
4.6µm Pixel Pitch
InGaAs
5µm Pixel Pitch
InGaAs
15µm Pixel Pitch
Filter Resolution  14.8µm Pixel Pitch
Binned 2x2

 13.8µm Pixel Pitch
Binned 3x3

15µm Pixel Pitch
Binned 3x3
15µm Pixel Pitch
Binned 3x3
Spectral Bands
*Custom Spectral Bands Available on Request

4 Band: RG B + NIR
450/100, 550/100, 650/100, 750LP


6 Band: RG B + 3xNIR
450/100, 550/100, 650/100,
740/60, 840/60, 940/60

9 Band
410/15,450/40,530/40, 575/20,610/20,650/25, 720/40, 790/20,850/40
4 Band
1120SP (900 -1120nm), 1220/70,1380/80, 1530LP
4 Band
1120SP (900 -1120nm), 1220/70, 1380/80, 1530 LP
Active Area  15.2mm(H)x15.2mm(W)
21.4mm(D)
4/3" Optical Format
 27.75mm(H)x37.75mm(W)  6.4mm(H)x5.12mm(W) 8.2mm(D)  7.68mm(H)x9.6mm(W)
Frame Rate  (Overclocked) 17 fps at Full Resolution  23.7 fps at Full Resolution  94.4 fps at Full Resolution  120 fps at Full Resolution
Optical Interface  F-Mount M58 x0.75  C-Mount C-Mount
Digital Output  GigE Vision  GigE Vision  GigE Vision  Mini Camera-Link
Dimensions (without lens or mount) 60mm(H)x60mm(W)x70.8mm(D)  70mm(H)x70mm(W)x70mm(D)  50mm(H)x50mm(W)x42.7mm(D)  50mm(H)x50mm(W)x69.4mm(D)
Weight 389g 380g 138g 282g
