    SpectroCam 2™ Multispectral Cameras

    Filter wheel cameras to speed up your product development.

    SpectroCam 2™ is the only multispectral imaging platform that allows users to combine a customer-selected camera, user-swappable high-performance hard-coated interference filters, and custom in-house filter manufacturing within a single portable system.



    Request a Quote
    SpectroCam 2 (12)

    Powerful, Portable & Fully Configurable Multispectral Imaging

    SpectroCam 2™ is a fully configurable multispectral imaging platform designed for product development, proof-of-concept testing, research, and OEM integration. Built around a new architecture, SpectroCam 2™ allows users to select the camera sensor, spectral bands, filters and lenses that best fit their application so that the optimum balance between resolution, frame rate, field of view and spectral range may be chosen.

    SpectroCam 2™ multispectral cameras offer a sophisticated, flexible imaging platform for fast product development and multispectral / hyperspectral research.

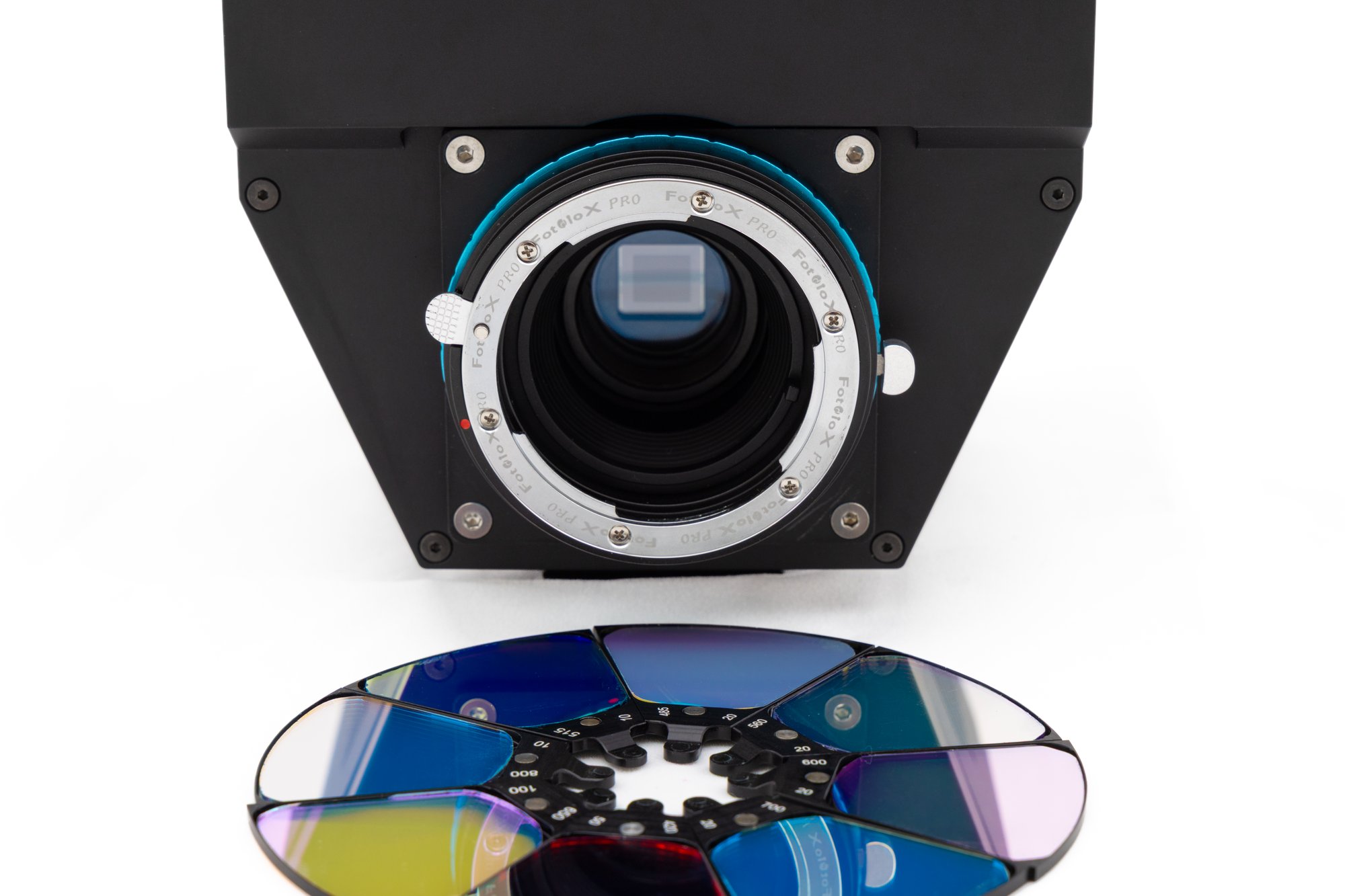

    Available across UV, VIS and NIR wavelength ranges, SpectroCam 2™ features an eight-position rotating filter wheel with user-swappable hard-coated bandpass filters, allowing spectral bands to be changed as project requirements evolve.

    Users can select from a range of camera sensors spanning UV through NIR, enabling optimization of spectral response, resolution, and frame rate for specific applications. The camera accepts a wide range of lenses with a Nikon mount available off-the-shelf.

    Why SpectroCam 2™?

    The SpectroCam 2™ was redesigned from the ground up to replace the original SpectroCam™ platform.

    Unlike conventional multispectral cameras that rely on fixed configurations or liquid crystal tunable filters (LCTFs), SpectroCam 2™ gives users direct control over filter selection, sensor choice, and system performance.

    Key Advantages

    • Eight-position rotating wheel for rapid multispectral imaging
    • User-swappable high-performance hard-coated interference filters
    • Custom filter designs available from Torrent Photonics' in-house coating and photolithography teams
    • Sensor options spanning UV, VIS and NIR
    • Broad camera compatibility for higher resolution and frame rate options
    • Higher optical throughput compared with LCTF-based approaches
    • Bandwidth specified per spectral band rather than limited by tuneable filter technology
    • Portable design suitable for laboratory, field, and OEM integration

    Capabilities

    • User-Swappable Hard-Coated Bandpass Filters
    • UV-SWIR Sensor Selection
    • In-House Custom Filter Design & Manufacturing
    • OEM Integration & Product Customization
    • Wide Range of Configuration Options Available.
    • Systems Development and Manufacturing

    Applications

    SpectroCam 2™ is a fully configurable multispectral imaging platform designed for product development, proof-of-concept testing, research, and OEM integration. Built around a new architecture, SpectroCam 2™ allows users to select the camera sensor, spectral bands, filters and lenses that best fit their application so that the optimum balance between resolution, frame rate, field of view and spectral range may be chosen.

    SpectroCam 2™ multispectral cameras offer a sophisticated, flexible imaging platform for fast product development and multispectral / hyperspectral research.

    Available across UV, VIS and NIR wavelength ranges, SpectroCam 2™ features an eight-position rotating filter wheel with user-swappable hard-coated bandpass filters, allowing spectral bands to be changed as project requirements evolve.

    Users can select from a range of camera sensors spanning UV through NIR, enabling optimization of spectral response, resolution, and frame rate for specific applications. The camera accepts a wide range of lenses with a Nikon mount available off-the-shelf.

    • Research & Development
    • Multispectral Imaging & Analysis
    • Machine Vision & Inspection
    • Inspection, Measurement & Monitoring
    • Scientific & Laboratory Imaging
    • Security, Defense & Surveillance
    • Medical & Life Science Research
    • Agriculture & Environmental Monitoring
    • Authentication & Forensics
    • OEM Product Development

    OEM Customization Options

    SpectroCam 2™ was designed around customization. Customers can select their preferred camera platform, spectral range, filter set, resolution, and frame rate to create a configuration tailored to their application. Filters can be exchanged in the field as requirements change, eliminating the need to purchase an entirely new system.

    If an off-the-shelf filter set does not cover the required wavelengths, Torrent Photonics can manufacture custom hard-coated bandpass filters in-house, enabling highly application-specific spectral imaging solutions.

    Whether you need customization for proof of concept or high-volume production, we have the expertise and operational capabilities to provide solutions.



    Flexible Purchase Options

    Whether you're evaluating a new application, developing a proof of concept, or deploying a multispectral imaging solution at scale, SpectroCam 2™ is available in configurable packages to suit your requirements.

    For organizations looking to minimize upfront investment, leasing options may be available.

    Request Pricing and Leasing Information
    OEM Customization Options

    SpectroCam 2™ Multispectral Cameras

    Compare models and specs to learn more about how SpectroCam 2™ fits your requirements.

    Multispectral Camera with CMOS Sensor

    At the heart of the SpectroCam 2™ UV is a high-performance camera utilizing the Sony IMX487 image sensor. This UV multispectral camera allows users with the proper filters to see an object’s reflected spectra from 200 nm to 700 nm.

    Applications include medical imaging, forensics, and authentication. The UV sensitivity allows users to image much lower in the spectrum, opening up biological and latent fingerprint imaging, among others.

    Key Features

    • Sequential 8 band multispectral imaging
    • Full frame resolution at up to 87 frames/second*
    • Interchangeable standard & custom spectral filters
    • Intuitive acquisition software
    • High-speed digital video output

    OEM Customizations

    • Application-specific multispectral engine
    • Easy modular device integration
    • Optimized spectral bands & imaging
    • Proof of concept to high-volume production

    Technical Specifications

    Spectral Response 200 nm to 700 nm (UV-VIS)
    Resolution  2,840 x 2,840 pixels
    Sensor CMOS, Silicon, 8MP 2.74 µm Pixel Pitch
    Spectral Bands 8 Filters
    Active Area

     7.78 mm (H) x 7.78 mm (W)

    11 mm diagonal
    Frame Rate

     Up to 87 fps*

     *Frame Rate depends on Operating Mode selected
    Optical Interface Nikon F Mount standard (Manual Aperture & Focus), range of lenses available, adapters available upon request
    Digital Output  Gig-E Vision
    Dimensions (No Lens or Mount) 136 mm (H) x 24 mm (W) x 105 mm (D)
    Weight 680g (typical)





    Build Your Multispectral Imaging System Around Your Application

    Select the sensor, filters, and performance characteristics that meet your requirements. Our team can help configure a SpectroCam 2™ solution or develop a fully customized OEM platform.
